LoRa Low-Frequency (169MHz)
Scope
Enrich radio connectivity capabilities with LoRa low-frequency (VHF-band) operating at 169 MHz
|
|
Host board |
insigh.io main board |
Add-on Capabilities |

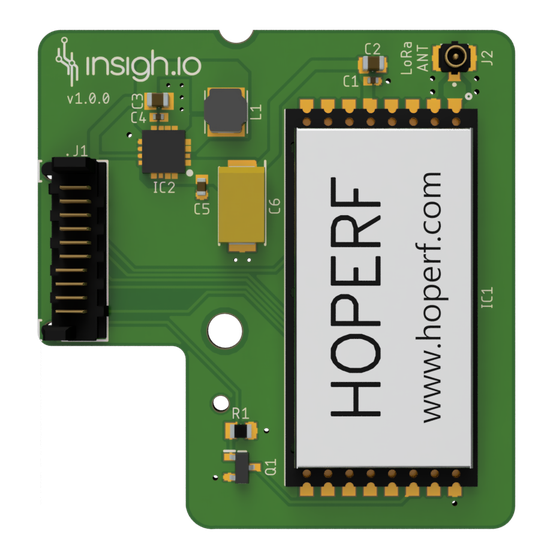

Radio Modem based on RFM98W-169S2 (HopeRF) module |
|
Chipset: Semtech’s SX1276 137 MHz to 1020 MHz Low Power Long Range Transceiver |
Dimensions (L x W x H) |
30.5 x 49 x 16.7 mm |
Weight |
7 g |
External components required/recommended
- External VHF (169 MHz) Antenna with U.FL to SMA cable (example part number: 169M-ANT720)
Connection
|
|
Connector |
Special 10-pin Connector (Part number: 90325-0010 [Molex] ) |
Cable |
Special Flexible 10-pin Ribbon Cable (Part Number: 92317-1015 [Molex] ) |
Marking
|
|
CE |
planned |
FCC |
planned |
RoHS |
planned |
Firmware Support
- Currently, basic functionality of the shield can be enabled with the open-source Micropython library u-lora available in Github
- Full “insighio-ready” firmware support expected in Q2-23
Custom designs
The existing boards are highly configurable and expandable so if the existing boards do not fit your need, get in contact with us and we will tailor a solution for you with your customizations.
