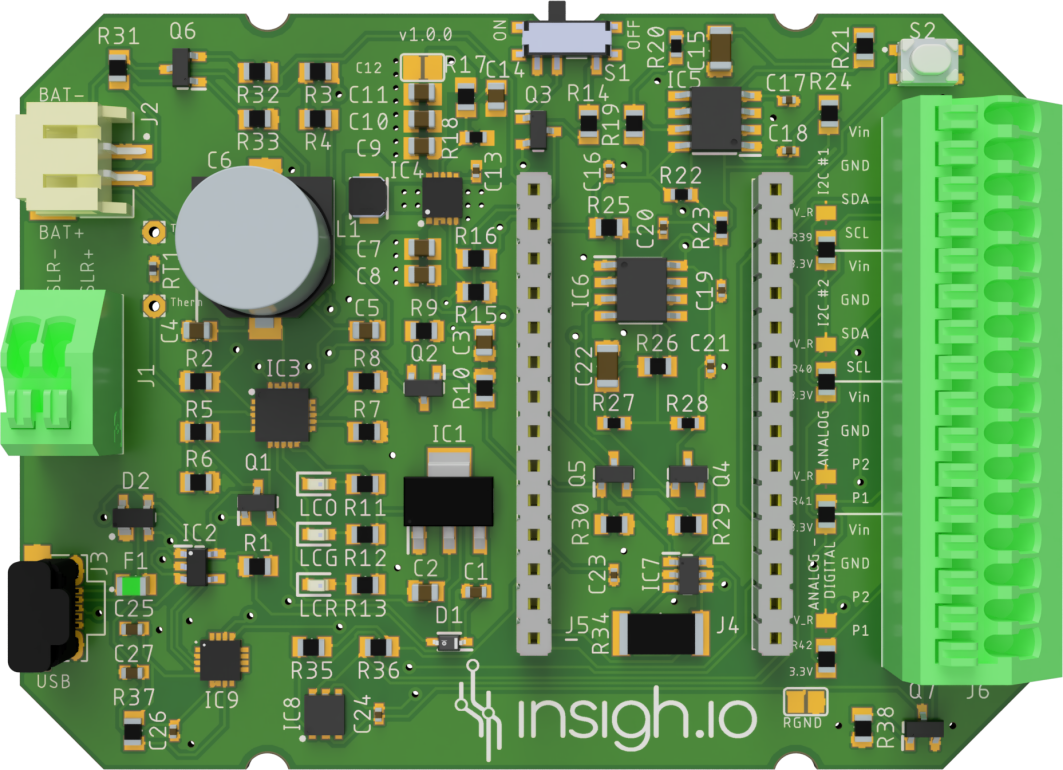

Pycom Generic Host Board
|
|
Host board |
Pycom development board (link) |
Supported Sensors |
Analog, I2C, Digital, Temperature, Humidity |
Power Supply |
USB, Battery, Solar Panel |
Misc |
USB for firmware flashing and debugging |
|
Power switch |
Software |
micropython |
|
Open-source libraries & demo scenarios @ Github |
Dimensions (L x W x H) |
78 x 57.2 x 13 mm |
Weight |
25 g |
Enclosure |
IP65/IP67 |
Example Applications
- Precision Agriculture
- Environmental monitoring
- Asset tracking
Sensors Support (Hardware & Software)
|
|
On-board Sensors |
1 x Temperature/Humidity Sensor (based on the SI7021 chip) |
Number of External Sensors |
Up to 4 (simultaneously) |
External Sensor Interfaces |
Analogue @ 3.3V |
|
Digital: 1-wire @ 3.3V, I2C @ 3.3V |
Low energy operation |
Software-controlled |
Sensor models sw support |
Analogue: Meter’s EC5 (Soil), Pino-Tech’s Soil Watch 10 (Soil) |
|
1-wire: DS18B20 (Outdoor Temperature) |
|
I2C: SI7021 (Temperature / Humidity), BME680 (Environmental), TSL2561 (Luminosity) |
Communication
- Wireless technologies
- WiFi
- Bluetooth
- LoRaWAN
- NB-IoT/LTE-M
- IP-based protocols
- TCP/UDP over IPv4/IPv6
- MQTT
- CoAP
Power Supply
|
|
|
|
|
|
USB |
Port |
Input Voltage |
|
|
|
|
Micro USB |
Min. |
Typ. |
Max. |
Units |
|
|
4.5 |
5 |
5.5 |
V |
Battery |
Port |
Nominal Characteristics |
|
|
|
|
JST |
1 x Rechargeable LiPo 1S1C 3.7-4.2 V |
|
|
|
Solar Panel |
Port |
Input Voltage |
|
|
|
|
Fixed Terminal Block with push-in connection (no tools required) |
Min. |
Typ. |
Max. |
Units |
|
|
5.5 |
6 |
6.5 |
V |
Operating Conditions
|
|
Operational Temperature |
0 – 60 C |
Charging Current Limit |
330 mA |
Maximum Drawn Current |
500 mA |
Charging Temperature |
0 – 60 C |
Charging State Indication (LEDs)
Charge cycle state |
LCO |
LCG |
LCR |
Shutdown state 1 |
OFF |
OFF |
OFF |
Shutdown state 2 |
OFF |
OFF |
ON |
Preconditioning |
ON |
OFF |
ON |
Constant current |
ON |
OFF |
ON |
Constant voltage |
ON |
OFF |
ON |
Charge complete-standby |
OFF |
ON |
ON |
Temperature fault |
ON |
ON |
ON |
Timer fault |
ON |
ON |
ON |
Low battery |
ON |
OFF |
OFF |
No battery |
OFF |
OFF |
ON |
No input |
OFF |
OFF |
OFF |
Switches
Switch Name |
Details |
S1 |
Controls power supply to the micro-controller (the battery charging process is not affected) |
S2 |
Tactile switch for activating the micro-controller’s bootloader (needed only for fw upgrade) |
SNSR |
Software-controlled switch for enabling/disabling power supply to sensors on-demand |
Hardware Watchdog
|
|
Operation |
Force a power-off/on cycle of the microcontroller after an inactivity period |
Control |
Software-based using a GPIO pin (Enable/Disable) |
Inactivity Period |
Pre-programmed (on demand), from 2 minutes to 30 hours |
Energy Consumption Profiling
|
|
Battery Voltage |
Accurate Measurement of battery voltage even at charging state |
Current |
Measurement of drawn current at any state (idle, sensor reading, communication) |
External components required/recommended
- Microcontroller
- Pycom WiPy 3.0 or LoPy4 or GPy or FiPy (depending on communication needs)
- Battery
- Solar Panel
Marking
|
|
CE |
planned |
FCC |
planned |
RoHS |
planned |
Custom designs
The existing boards are highly configurable and expandable so if the existing boards do not fit your need, get in contact with us and we will tailor a solution for you with your customizations.
