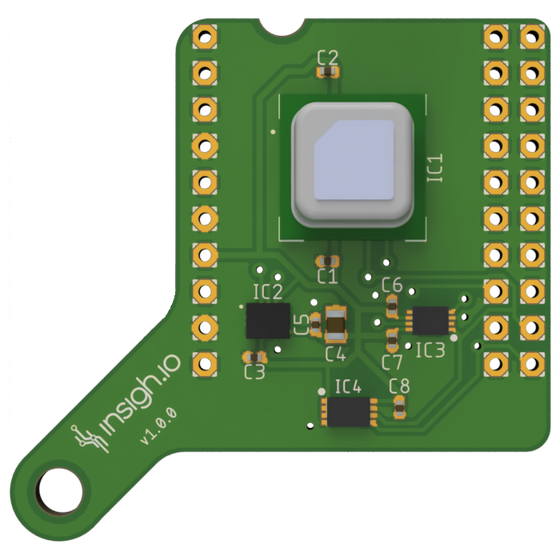

Vehicle
Scope
Provide support for gas monitoring and movement tracking. It is applicable in various use-cases and environments, such as:
- automated road hazard detection when installed in vehicles
- indoor air quality monitoring, when installed in confined spaces.
General Information
| Host board | insigh.io main board |
| Dimensions (L x W x H) | 37.7 x 36.47 x 16.7 mm |
| Weight | 8 g |
Example Applications
- Special environment Air Quality monitoring (in-cabin, workspace, mine, underground tunnel)
- CO2 level monitoring
- Vehicle monitoring / environment recording
- Accelerometer, Gyroscope, Compass -> bump detection, slope recording, force metering
Integrated Sensors Support (Hardware & Software)
| Sensor Name | Functionality |
|---|---|
| asm330 | Automotive 6-axis inertial module: 3D accelerometer and 3D gyroscope |
| scd40 | CO2 sensor |
Acknowledgment
Part of this development has been performed in the context of and supported by ASSIST-IoT Project.
