Machine
Scope

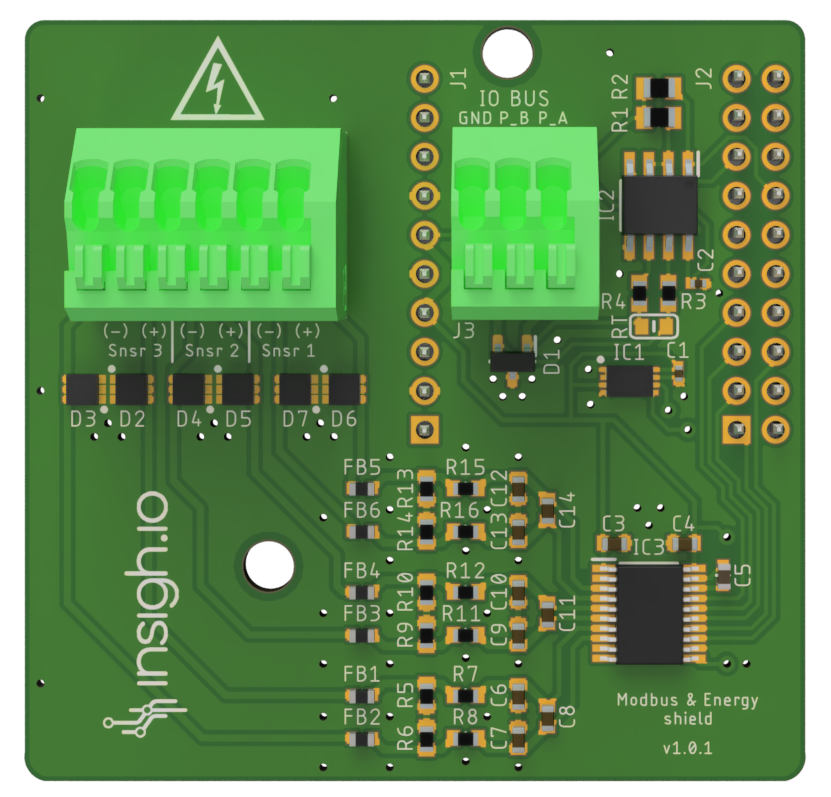

Provide support for remote machine control, using standard interfaces, i.e. Modbus RTU & 4-20mA. Typical applications include the control of machines “brain”, namely PLCs, and energy consumpetion, using non-obstructive current sensors.
|
|
| Host board |
insigh.io main board |
| Version |
v1.0.1 |
| Supported Sensor Interfaces |
1 x Modbus-RTU (A, B, GND) & 4 x 2-wire 4-20mA |
| Sensor Headers |
1x3-pin (Modbus-RTU) & 1x8-pin (4-20mA) |
| Supply Voltage |
None: External Voltage should be used for Modbus. No supply is needed for 4-20mA sensors |
| Dimensions (L x W) |
50.9 x 49.5 x 16.7 mm |
| Weight |
10 g |
| Software Support |
Under development. Get in contact with us for further information |
Indicative list of tested devices
- PLCs with Modbus RTU interface (slave), such as IDEC
- Split Core Transformers with 4-20mA interface, such YHDC
Sensor Ports
Modbus-RTU
|
|
| Number of Physical Sensors |
1 x Physical Port with 3 pins (A,B,GND). External Power is needed |
| Number of Supported Sensors (SW/HW) |
Multiple slaves with external combiner |
4-20mA for Split Core CTs
|
|
| Number of Physical Sensors |
4 x Physical Port for 2-wire 4-20mA sensors. |
| Analogue Readings |
High Precision 4-channel 24-bit ADC Processing based on ADS131M03 IC. Automated transformation to RMS current voltages. |
Marking
|
|
| CE |
ongoing, expected to be completed in Q1-2026 |
Changelog
| Version |
Release Date |
Comments |
| 1.0.1 |
12/02/2025 |
- Added placeholder pads (NM component) for RS485 termination resistor |
| 1.0.0 |
28/11/2024 |
- First stable version |
