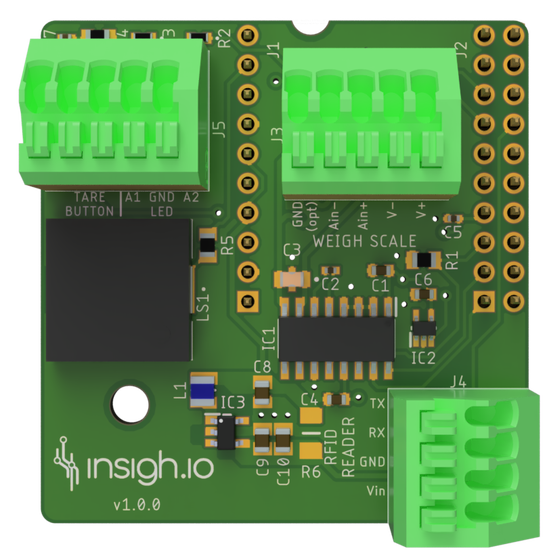

Scale
Scope
Provide support for weight measurements using load cell sensors. In addition, measurements are accompanied with audio/visual user notifications as well as user interaction through a serial port able to communicate with external RFID cards.
Our baseline firmware supports a baseline periodic weight measurement of a:
- Beehive, for monitoring production of honey.
- Bin, for tracking waste generation.
Then, by utilizing the full potential of the offered functionality, more advanced usage scenarios can be developed which require user interaction. A good example is the Smart Scale system for Incentivized Recycling used by citizens. The shield, apart from measuring the weight of the recycled material, is able to provide:
- Support for external user recognition devices like RFID and NFC readers
- The status of the device health through programmable leds
- Audio feedback for both everyday operations, such as successful recognition of user & recording of new waste throwing event
This shield is still under development. Registrer your interest to discuss further options.
General Information
| Host board | insigh.io main board |
| Version | v1.0.0 |
| Supported Sensor Interfaces | 1 x Load-Cell (5-pin: V+, V-, A+, A-. GND) |
| Supported Peripherals | 1 x UART (Vin, GND, RX, TX) for external recognition devices like RFID readers |
| 1 x Press Button Input (e.g. for implementing TARE) | |
| 1 x Multi-Color LED | |
| 1 x polyphonic buzzer | |
| Supply Voltage | 5V DC |
| Sensor Headers | 1x5-pin (Load Cell) & 1x5-pin (Button,Led) & 1x4-pin (UART for RFID/NFC) |
| Software Support | Under development. Get in contact with us for further information |
Indicative list of tested sensors
- Any Load Cell
- rdm6300 (RFID reader)
- pn532 (NFC reader)
